Hydraulic Fittings
Hydraulic Connections are used to connect hydraulic circuit lines and constitute an important part of the hydraulic system.
Fittings are available according to norm DIN2353, fittings for flared pipes according to SAE J514 34° UNF and adapters with threads 60° BSP. All supplied fittings are available in Steel, stainless steel, Cupro- Nickel for specially designed applications or for high temperatures with VITON seal.
Available Material
- Carbon Steel
- Stainless Steel
- Cupro-Nickle
- Brass

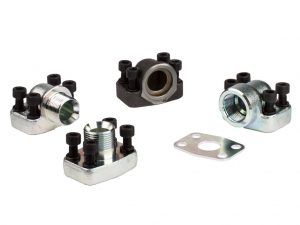

Flanges
SAE Flange Connectors are available in Standard and High-Pressure Series according to ISO 6162-1/2:2006 and SAE J518 C respectively.
SAE Flanges are used as a reliable alternative to regular pipe and tube connectors. Their biggest advantage is the considerably higher pressure resistance for many sizes and the continuous pressure level of the High-Pressure Series which can operate with maximum working pressures of up to 400 bar.
SAE Flanges are available as individual components, or complete with seals and suitable sets of bolts.
- Carbon Steel
- Stainless Steel
Clamps
Pipe clamps are used for the attachment of a pipe distribution system and hose line. These products are high quality and therefore do not transmit negative vibration and noise. Pipe holders are produced in a wide range and can be used anywhere.
The most commonly used clamps are according to DIN3015 standard for one and two rows of tubes, followed by the heavy-duty series for extreme operations. We also supply polyamide pipe clamps and an aluminum series for high temperatures. Weld and cover plates are available in stainless steel.
- PP ( Green )
- PA ( Black)
- Aluminium
HydroTechnik
Hydrotechnik is an innovative medium-sized company that is one of the leading suppliers of industrial measurement technology for diagnosis and condition monitoring of high-pressure systems worldwide. In total, the Hydrotechnik group employs over 140 employees worldwide. In addition to the headquarters in Germany, our staff is located in sales offices in France, Italy, China, and the United States.
Products
- Test points
- Sensors
- Measuring Instruments software.
Hydrotechnik develops, manufactures, and sells solutions for the complete workflow of professional measuring technology. Our sensors for all usual measurements are reliable, strong, and available for a large number of applications. Hydrotechnik developed the Intelligent Sensor Detection System (ISDS) that is used to hand over sensor parameters and linear tables when the sensor is connected to the measuring instrument. This means a reliable plug-and-measure.
The Hydrotechnik family of professional measuring instruments supports measuring engineers and service technicians during their daily measuring tasks. A suitable instrument is provided for each field use: beginning with a cost-efficient.
Hydraulic Hose
All types of hydraulic hoses for all applications. Design and customize products for special projects, Technical support, and perfect after-sales to eliminate worries.
Hose Fittings
Hose fittings with multiple bends, adapters shaped to requirements, and screw fittings with a wide range of threads and complex collectors and distributors.
Quick-Release Couplings
Quick-release couplings uncouple automatically under excessive tensile load, preventing separation of the hose lines.
Ball Valves
Ball valves with connection threads according to DIN2353 or with internal threads BSP, NPT and UNF.
•Ball valves with mounting desk
•Ball valves in stainless steel
•Forged ball valves
•Flanged ball valves (flanges SAE, DIN,ANSI)
•Ball valves for extremely high pressure (steel – up to 800 bar, stainless steel – up to 700 bar)
Hydraulic Cylinders
Double-acting differential cylinders with different clamping possibilities. Seals are selected in accordance with the reliable and easily available ISO standard. Optionally available with position sensor and limit switch.
•Piston diameter: 40mm to 320mm Stroke length: to 6000mm
Double Ferrule
A double ferrule compression fitting is the most common instrumentation style fitting. They are regularly used in process measurement and control systems in aerospace, defense, chemical processing plants, medical equipment, and oil & gas industries.
Compression fittings are made up of three components: nut, body, and ferrule (either single or double). This design creates a sequential grip on the tube. Instrumentation fittings have U.N.E.F. or (United National Extra Fine) threads and sizing is determined by the outside diameter of the tubing being used. The ferrule coins and compresses into the tube to provide a tight grip on the tube surface.
Tube Manipulation
Tube manipulation is useful in many sectors and is used for a wide range of purposes including the creation of hydraulic systems, refrigeration, heating, and many more. Our tube manipulation is used for both domestic and industrial purposes. We are able to provide tube manipulation across a variety of materials. With state of the art technology and an experienced team we can deliver to your precise requirements.
